InnoSpectra 近红外光谱仪 - NIR-S-G1、NIR-M-R2、NIR-M-F1

手持式近红外光谱仪

InnoSpectra专注于近红外光谱扫描技术，期望提供一个微型化、性价比高、且非破坏性的检测工具，并且建构领先业界的快检平台，用我们的解决方案来协助改善全球近年来层出不穷的食品安全、伪药等事件，并在大数据与人工智能的蓬勃发展下加速近红外光谱扫描技术于物联网与工业4.0的应用。

产品负责人

姓名：王工（William）

电话：15317330587（同微信）

邮箱：sales@yixinkeyan.com

微信：扫描二维码添加

产品型号

产品名称 规格型号 货期 单价
手持式近红外光谱仪 NIR-S-G1 1-2周 折扣价
反射型近红外光谱模块 NIR-M-R2 1-2周 折扣价
光纤式近红外光谱模块 NIR-M-F1 1-2周 折扣价
穿透式近红外光谱模块 NIR-M-T1 1-2周 折扣价

目前产品均为在售中，如果您对产品的规格参数、报价、货期等信息有任何问题，请随时和我们或者产品负责人联系，我们将在收到您的询问信息后第一时间给您回复。

产品描述

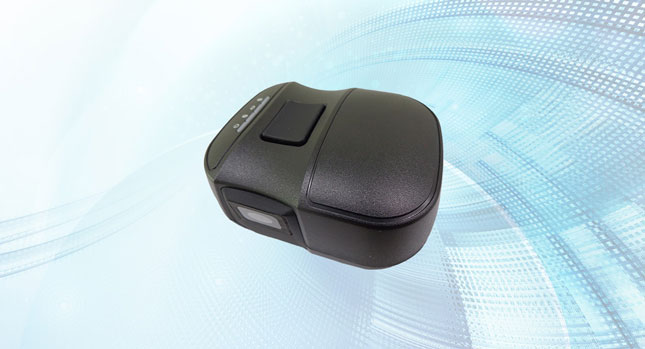

◾NIR-S-G1 / 手持式近红外光谱仪

规格参数：

  • Model Name :NIR-S-G1

  • Wavelength range :900-1,700 nm

  • Optical Resolution :Typ. 10 nm, Max. 12 nm

  • Wavelength Accuracy :Typ. ±1 nm (verified with SRM2036), Max. ±2 nm

  • Signal-to noise ratio :5000:1 in 1 second scan

  • Thermal Stability :0.0375 nm / ℃ ( 25~50 ℃ )

  • Illumination Module : Diffuse reflective  with two integrated tungsten filament lamps (0.7W*2)

  • Slit Size :1.8 x 0.025 mm

  • Detector :1 mm InGaAs (uncooled)

  • Scan Capability :Linear / Hadamard / Slew Scan

  • Communication Interface :USB and Bluetooth Low Energy (BLE)

  • Sensors :Ambient humidity and temperature sensor

  • Power :USB or Built-in Li-ion battery

  • Dimensions :82 x 63 x 40 mm

  • Weight :~ 136 g (with battery)

--------------------------------------------------------------------------------------------------------

◾NIR-M-R2 / 反射型近红外光谱模块

规格参数：

  • Model Name :NIR-M-R2

  • Wavelength range :900-1,700 nm

  • Optical Resolution :Typ. 10 nm, Max. 12 nm

  • Wavelength Accuracy :Typ. ±1 nm (verified with SRM2036), Max. ±2 nm

  • Signal-to noise ratio :5000:1 in 1 second scan

  • Illumination Module : Diffuse reflective  with two integrated tungsten filament lamps (0.7W*2)

  • Slit Size :1.8 x 0.025 mm

  • Detector :1 mm InGaAs (uncooled)

  • Scan Capability  :Linear / Hadamard / Slew Scan

  • Communication Interface :1.USB and UART 2.Bluetooth Low Energy (BLE) (optional)

  • Sensors :Ambient humidity and temperature sensor

  • Power :USB

  • Dimensions :75 x 58 x 26.5 mm

  • Weight :< 80 g

--------------------------------------------------------------------------------------------------------

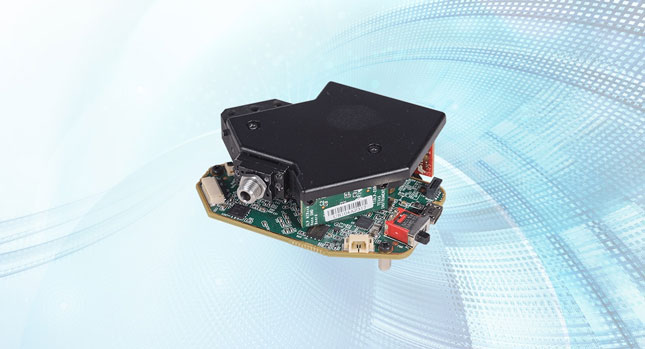

◾NIR-M-F1 / 光纤式近红外光谱模块

规格参数：

  • Model Name :NIR-M-F1

  • Wavelength range :900-1,700 nm

  • Optical Resolution :Typ. 10 nm, Max. 12 nm

  • Wavelength Accuracy :Typ. ±1 nm (verified with RM-NIR), Max. ±2 nm

  • Fiber Optic Connector :SMA905

  • Slit Size :1.8 x 0.025 mm

  • Detector :1 mm InGaAs (uncooled)

  • Scan Capability :Linear / Hadamard / Slew Scan

  • Communication Interface :1.USB and UART2.Bluetooth Low Energy (BLE) (optional)

  • Sensors :Ambient humidity and temperature sensor

  • Power :USB

  • Dimensions :75 x 58 x 26.5 mm

  • Weight :< 65 g

--------------------------------------------------------------------------------------------------------

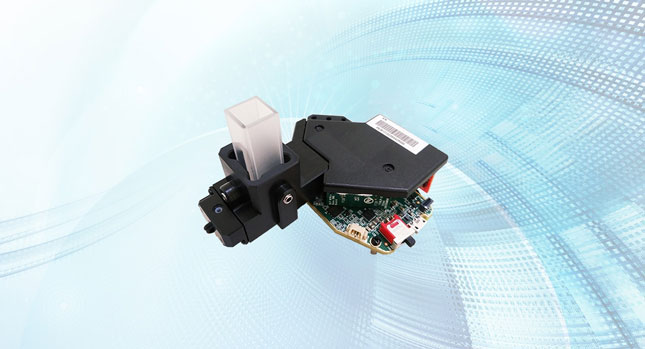

◾NIR-M-T1 / 穿透式近红外光谱模块

规格参数：

  • Model Name :NIR-M-T1

  • Wavelength range :900-1,700 nm

  • Optical Resolution :Typ. 10 nm, Max. 12 nm

  • Wavelength Accuracy :Typ. ±1 nm (verified with RM-NIR), Max. ±2 nm

  • Signal-to noise ratio :5000:1 in 1 second scan

  • Illumination Module : One integrated tungsten filament lamp (0,7W *1)

  • Slit Size :1.8 x 0.025 mm

  • Detector :1 mm InGaAs (uncooled)

  • Scan Capability :Linear / Hadamard / Slew Scan

  • Communication Interface :1.USB and UART 2.Bluetooth Low Energy (BLE) (optional)

  • Sensors :Ambient humidity and temperature sensor

  • Power :USB

  • Dimensions :91.8 x 76 x 41.2 mm

  • Weight :~ 106 g
